Stranded Cat5e Ethernet Lan Cable Shielded Bulk For Patch Cord
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.cat5e stranded shielded Bulk cable
2.Outer jacket: PVC,LSZH,CMR ,CMP are available.
3. Test :Pass fluck test and with 25 years quality

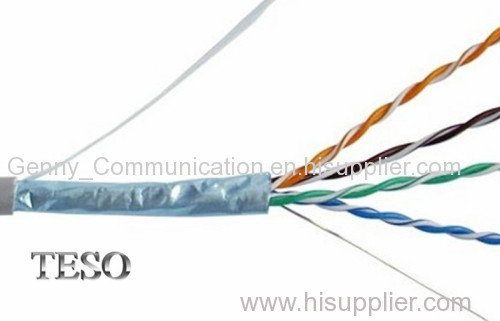

Stranded Cat5e Ethernet Lan Cable Shielded Bulk For Patch Cord
Quick Detail:
1.cat5e stranded shielded Bulk cable
2.Unshielded and shielded will be optional.
3. Conductor:7/0.2mm Bare copper , soft annealed bare copper,4 pairs.
4.Insulation: America Dow's HDPE
5.Outer jacket: PVC,LSZH,CMR,CMP are available.
6.Any color is optional .
7.Test :Pass fluke test and with 25 years quality warranty.
Cable Features
*Tested to 100MHz.
*Meets or exceeds Cat 5E T568C.2 standards.
*Easy to use pull box with bigger payout.
*Cable is marked in descending order so you always know how much cable is in the box.
*Extra headroom provides room for growth.
*Low attenuation and power-sum crosstalk.
Construction Facts
*The PVC Cable has high density polyethylene insulation.
*AL Shielding is used to help eliminate any interference.
*Longitudinal rip cord for easy jacket opening.
Cable Put-Ups
Cable is supplied in 1000ft increments in a pull box.
Electrical Characteristics
Frequency | ATT | ACR | DELAY | NEXT | PS-NEXT | ELFEXT | PS-ELFEXT | Return Loss |
MHz | dB/100 m | dB/100 m | ns/100 m | dB/100 m | dB/100 m | dB/100 m | dB/100 m | dB |
(Maximum) | (328 ft.) | (328 ft.) | (328 ft.) | (328 ft.) | (328 ft.) | (328 ft.) | (328 ft.) | (Minimum) |
(Maximum) | (Maximum) | (Minimum) | (Minimum) | (Minimum) | (Minimum) | (Minimum) | ||
1 | 3 | N/A | 570 | 65.3 | 62.3 | 63.8 | 60.8 | 20 |
4 | 6.15 | N/A | 552 | 56.3 | 53.3 | 51.8 | 48.8 | 23 |
8 | 8.7 | N/A | 546.73 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
10 | 9.75 | N/A | 545.38 | 50.3 | 47.3 | 43.8 | 40.8 | 25 |
16 | 12.3 | N/A | 543 | 47.2 | 44.4 | 39.7 | 36.7 | 25 |
20 | 13.95 | N/A | 542.05 | 45.8 | 42.8 | 37.8 | 34.8 | 25 |
25 | 15.6 | N/A | 541.2 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
31.25 | 17.55 | N/A | 540.44 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
62.5 | 25.5 | N/A | 538.55 | 38.4 | 35.4 | 27.9 | 24.9 | 21.5 |
100 | 33 | N/A | 537.6 | 35.3 | 32.3 | 23.8 | 20.8 | 20. |
